GRAPHITE 효과

GRAPHITE 효과

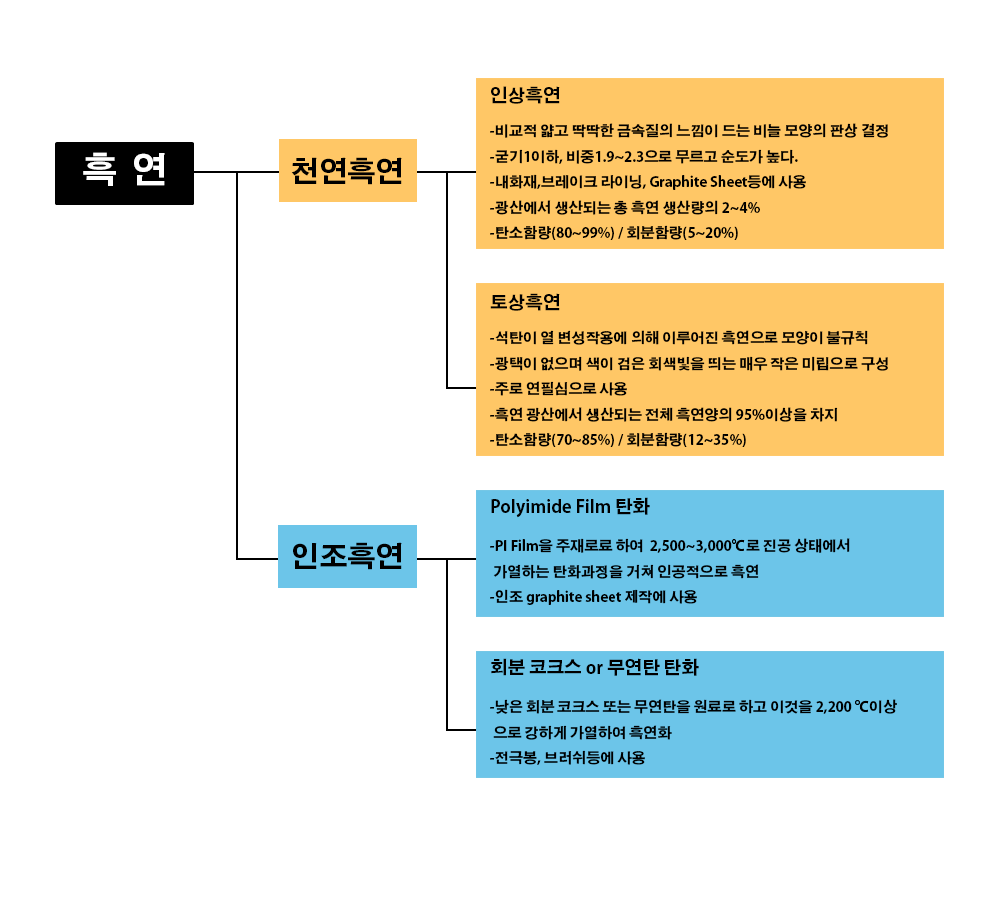

Graphite의 분류 및 용도

이미지명 이미지명

Graphite 특성 및 관련 기술

특성

  • 우수한 열전도성(400~1800W/mk)

  • 뛰어난 이방성 열전도 특성 (X-Y축 열전도성 탁월)

  • 열전도성이 우수하여 방열재 및 전도성 전자재료로 최적

  • 무기재 및 고분자와 융복합

  • 화학적, 물리적으로 뛰어남

  • 안정성, 자기 윤활성 탁월

  • 친환경 소재 (RoHS,HF)

  • 유연성, 압축 복원성으로 Seal 재료, 내 열재로 최적

핵심기술

  • Graphite 고배율 팽창 기술

  • Graphite 파우더 제조 기술 (99.8%이상 고순도)

  • Graphite Powder 분산 기술

  • Graphite 분쇄 기술

  • Graphite Compound 기술

  • Graphite 응용 재료 설계 기술

Graphite Sheet 방열원리

이미지명

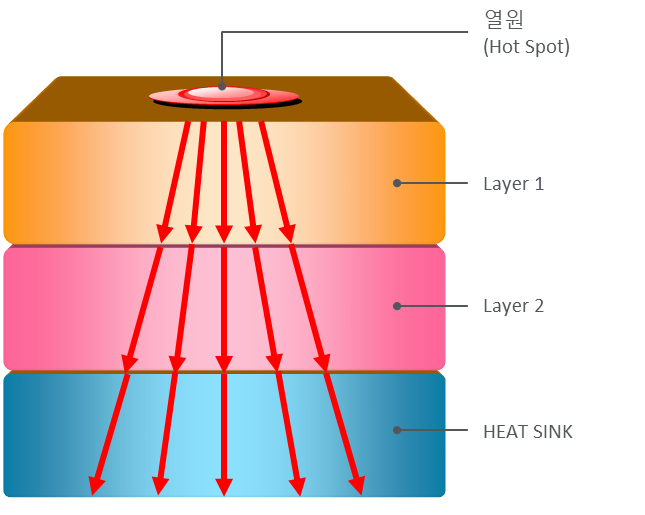

Without Graphite Sheet

이미지명

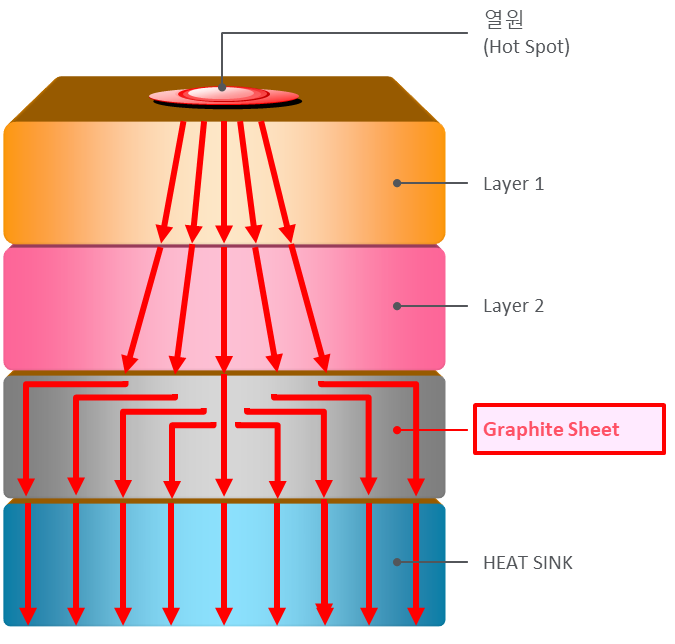

Applied Graphite Sheet

※ 빠르게 열을 수평방향으로 분산시켜 방열효율을 극대화

Graphite Sheet 적용 효과

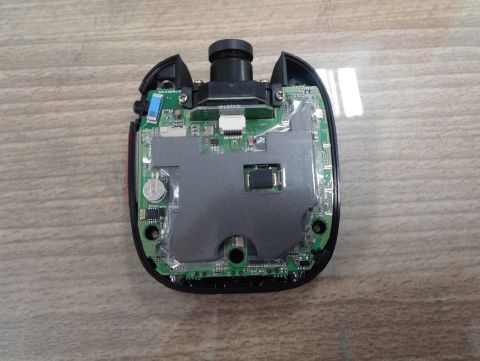

1. BLACK BOX

Time Initial value (Unattached sheet)
Max T 97.0℃
△T

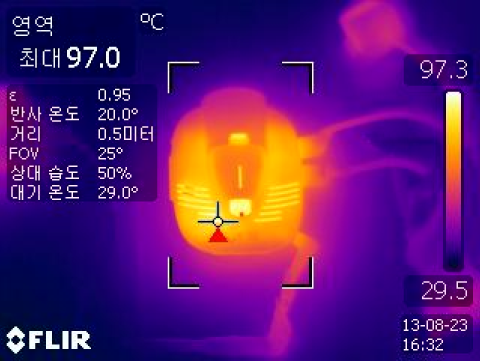

Thermal Imaging
Time 30 minutes after the sheet attachment
Max T 76.2℃
△T 20.8℃ decrease of temperature

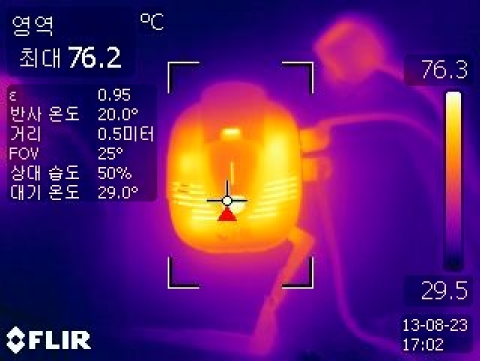

Thermal Imaging

2. SSD

Unattached Gtephite sheet

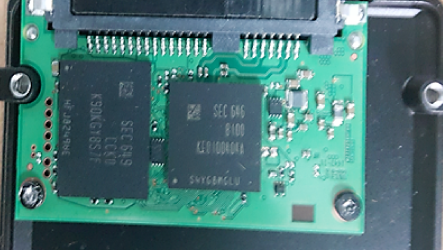

Test Photo Test Photo

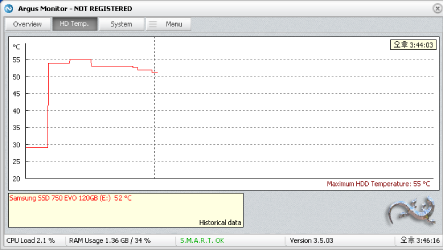

Software Temperature Measurement Software Temperature Measurement

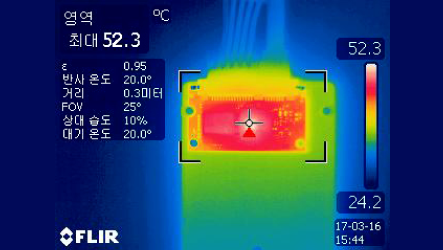

Thermal Imaging Thermal Imaging

Attached Graphite sheet

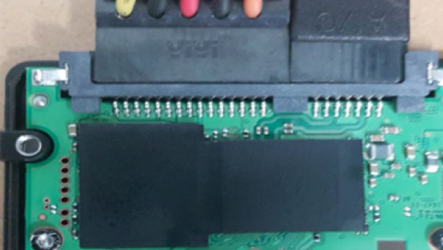

Test Photo Test Photo

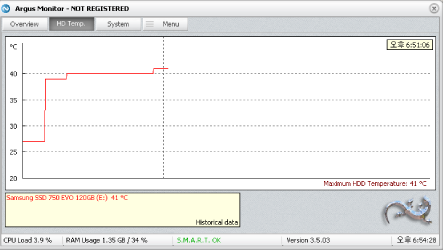

Software Temperature Measurement Software Temperature Measurement 11℃ decrease of temperature

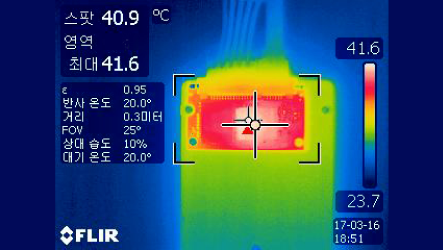

Thermal Imaging Thermal Imaging 10.7℃ decrease of temperature

Graphite Sheet 적용 사례

Phone/PAD/Tablet PC Phone/PAD/Tablet PC
TV/Display TV/Display
STB/Transponder/Network STB/Transponder/Network
Navigation/LED Light/ Navigation/LED Light/ Medical Device
